This model – planned to introduce to the market 2022 – is currently in production, under development.

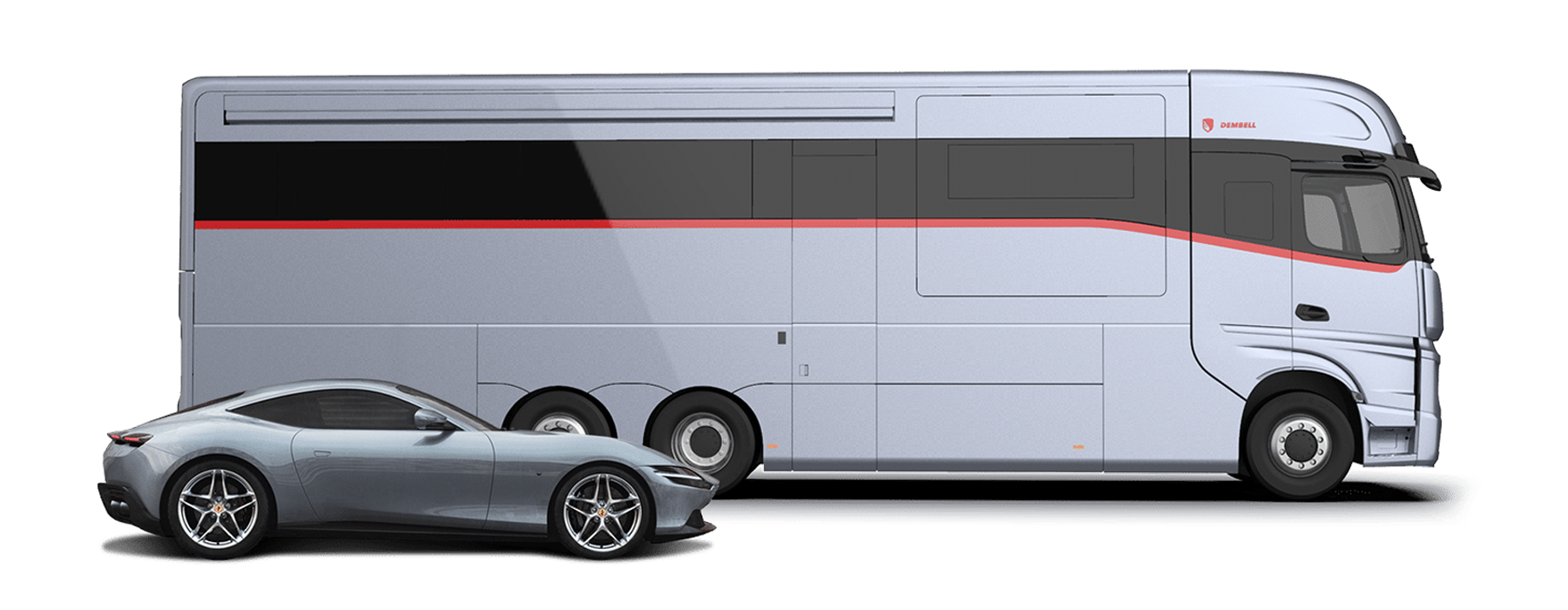

It is for travellers who are passionate about their cars, but don’t want to give up comfort either. Not only there is enough space in the garage for cars 4 meters long, but the bedroom above it remains comfortable too. The size of the garage may be increased upon individual request.
REFINEMENT AND LOOSE ELEGANCE
The unique exterior was brought completely in to one plane with minimal divisions, just like the side panels. We hid all the frames, the protruding parts, the windows and even the door handles. As a trademark, Dembell red colored stripes run ont he sides of the motorhome.
We keep our extra list short. Each of our model gets all the high class equipment that we use as standard.
Find your style
Choose a color option that fits you
Choose your motorhome’s unique color and favorite hue from the best paints available in the market! The clearcoat layer of the paintwork is applied using a dry technology, resulting in a total coating thickness of 250-350 microns. If you choose a metallic color, it will be applied in three coats, sprayed on a basecoat.
If you choose nacreous coating as an extra, one pearl-colored layer will be sprayed on three basecoats. At the end of the process, four layers of clearcoat are used to cover both versions, applied in two times two layers, with sanding in-between and one-day drying time.
Home is where
EASY-TO-USE SPACES TO LIVE

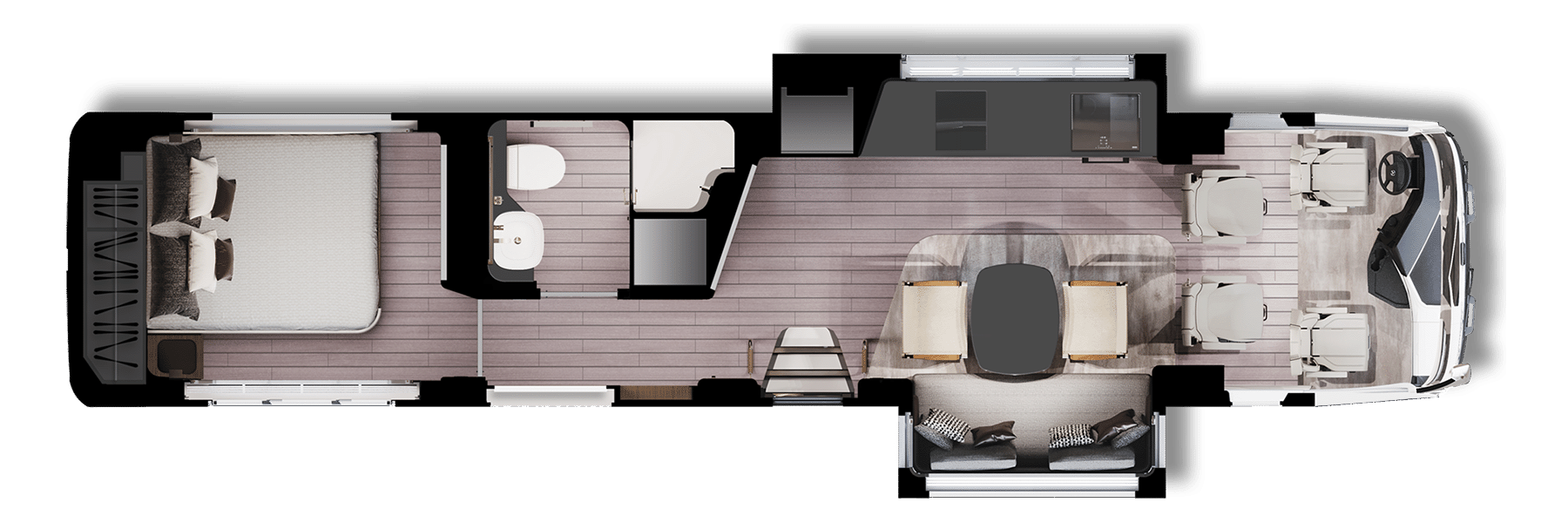

We created a yacht-like atmosphere working on with an Italian studio that previously also designed the interiors of Azimut yachts.The floorplan is clean and clever for the maximum space.
People centric engineering.
We use deeply deliberate and modern technical constructions from both an engineering and a user point of view. We also dared to introduce several technical innovations.
3 pcs. in side storage model in the front on the right side in the front rear on the left side.
Bottom luggage compartments
Fully insulated, felt covered, with heating, lighting, electric door lock, without door handle
600×350 cm Integrated in the side wall of the vehicle with automatic wind sensor LED lighting without outrigger leg. For up to 39 kmph windspeed
With pneumatic suspension and massage function
Electric window lift system
In cabin doors
Heated, made of tinted composite glass
Skylight in the cockpit
Electrically operated. With blinds and mosquito net
Real glass window
Integrated into the plane of the vehicle, can be opened, thermally insulated
Heat-insulated, with electrically operated blinds, window heating option
Stairs and doors
Tilting side stairs
Electrically operated TÜV certified, EU type approval
with servo locking
Middle box doors
with servo locking
Daytime running light/curve light
Auxiliary chassis made of galvanized steel profiles. MB Actros 2553 LLL 6×2 390 kW (530 PS) Euro VI engine, 2600 Nm
Made of stainless steel. Insulated sandwich panel roof, floor plate, side walls. Side walls with 3mm aluminium casing
Diesel, Six-cylinder, With turbocharger, Charge air cooling and exhaust gas recirculation (EGR)
With SCR catalytic converter, 12,800 cm3, 390 kW/530 HP,1800 RPM, EURO VI, 2600 Nm, 1100 RPM
Electropneumatic (EPB), ABS, ASR and ESP
Automatic 12-speed, Mercedes-Benz PowerShift 3
Diesel: 390 l, AdBlue: 60 l
Secondary water retarder
for iVm with CCS1I
multi-function, with immobilizer, with leather cover, power-assisted steering, adjustable steering column
8 pcs. aluminium, ALCOA Dura Bright 11.75×22.5” VA/9” x 22.5” HA / 11.75×22.5”
4 pcs. automatic horizontal adjusting of vehicle, with LCD monitor
automatic in the driver’s cabin
Lane departure warning + active brake assist (emergency brake assist)
including start-stop in traffic and monitoring assistant
Adaptive Cruise control
Outdoor temperature display
Electronic anti-theft/immobilizer system
FM radio RDS-EON, MW, LW, KW, front AUX port, bluetoothhands-free system
The system (takes into account the length /width/height/weight of the vehicle)The MB-Predictive Powertrain Control supports adaptive cruise control based on GPS data from the navigation system and taking into account the topography
Camera monitor system
Brigade electronics BN360-200 for large rigid vehicles26 cm (10.4”) LCD TFT monitor vertical orientation, four pcs. of 180° cameras active from 0 to 30 kmph, does not distract the driver’s attention at higher speeds
Front door lock
electrically operated control options: pushbutton, fingerprint sensor or card
Italian design: real wood veneer, veneered interior, multiple colour options, real wood floor finish.With electric locks that close automatically when the vehicle is started.
1800×2000 mm bed with spring-mattress according to individual needs for the highest comfort. Bedding with logo.
Genuine ceramic and glass, with anti-crash stainless steel spikes in the cabinets
Covered with genuine wood
Made of tempered glass
Real wood veneer, veneered interior, several colours to choose from, Italian design
with external socket MIELE DA2360
MIELE, two zones, 230 V
Refrigerator and freezer
LIEBHERR, net refrigerating volume 184 litres, net freezing volume 59 litres
MIELE, microwave/hot air
MIELE, with external outlet
Microwave/ Hot air oven
Uniquely designed bathroom mirror with round lighting, beautifying mirror with lighting
Heated, Covering of genuine lacquered wood
Towel drying radiator
TV in the living area
50” flat screen LED TV, Ultra HD, 4K
HARMAN KARDON, with bluetooth connection
BOSE VIRTUALLY INVISIBLE 591 ceiling speakers, 2 pcs.
24V energy storage system, Board batteries 4Å~25.9V/130Ah(520Ah) with mechanical isolating switches, intelligent charge/load isolation.
On-the-go charging of board batteries
With 140A charging current, with intelligent control, power supply for a group of 230V consumers from a sinusoidal inverter with a power output of 6500-13000 W
Stationary start batteries
With 16A charging current with intelligent controlwhen the vehicle is stationary
Each 230V supply and output circuit of the vehicle is protected by a residual-current device, its 24/12V circuits are protected by a fuse.
2×230 V/16A power supply (Priority + Alternative) from shoreside + generator’s Auto Start/Stop system. Priority supply can be set between 1-16 A. Board batteries have a maximum charging current of 200 A.
Full monitoring/controlling with touch screen display
10” in the living area and 10″ tablet7″ in the living room cab, accessible from remote devices (mobile phone, tablet).
Lighting circuits with dimming control
ONAN, 4.8 kW, 230 V, 2400 RPM
two cylinder KUBOTA diesel engine, water-cooled, with cooling/fan unit, built-in sound-insulated box, exhaust system
LCD control panel in external storage compartment
FUJITSU duct-type, circular concealed air supply
Multi split air conditioner
FUJITSU duct-type, multi split air conditioner 6.8 kW, R410A Invert, heat pump
Sleeping area indoor unit
cooling: 3.5 kW, heating: 4.1 kW
Living area indoor unit
cooling: 4.3 kW, heating: 5.0 kW
SCHEER MH 10/17 Hybrid combi boiler, heat output: 10,000/17,000W, Automatic burn control for max. 3,000 metres above sea level(9,842 feet), 100% soot less burning, efficiency: approximately 92%, built-in, buffer tank for hot water preparation with constant temperature
In each room
In each room (towel drying radiator in the bathroom)
In the living area, kitchen, bathroom and sleeping area
Storage rooms and garage heating
230 V/1000 – 2000 W, (if the vehicle is connected to an external electrical system, heating to a moderate temperature can also be achieved electrically)
Fresh water tank
capacity: 1,000 liters (264.17 US gallons), filling of the fresh water tank with GARDENA®, connection in the storage compartment, automatic level control, water disinfection equipment (UV lamp) installed in the water tank, 18.9 l/min, 3.8-4.5 bar water pressure pump
Fresh water tank in the storage compartment
with GARDENA® connection and automatic level control, Water disinfection device (UV lamp), built into the water tank.
Grey water tank
capacity: 460 l (121.5 US gallons), insulated and heated, 1.5” connection,
the drain valve can be controlled from the inside
With a delivery rate of 18.9 l / min and with 3.8 – 4.5 bar water pressure
capacity 400 litres (105.7 US gallons), insulated and heated, with 3” connection, the drain valve can be controlled from the inside
The highest category “A” AXALTA metallic paint on the entire vehicle, three-layer metallic paint, four-layer anti-graffiti crystal lacquer
Custom combination of internal and external colours
Leather covered dashboard elements
In beige colour
Insulated side walls
backwards from column B
Bed in the cab
Double bed in the cab
electrically operated 1550×2000 mm cold foam mattress textile wall covering custom storage compartment
630×350 cm integrated in the side wall of the vehicle with automatic wind sensor LED lighting without out rigger leg for up to 39 kmph wind speed
600×300 cm integrated in the side wall of the vehicle with electrical Valance function automatic wind sensor. LED lighting without outrigger leg for up to 39 kmph wind speed
without designation BRUSTOR and Dembell
Rotatable second row of seats in the cockpit*
2 pcs. GRAMMER comfort seats with: leather cover, integrated three-point seat belt, height and tilt adjustment, seat cushion depth adjustment, armrests and integrated headrest, seat heating and seat ventilation.
*Windows in the cockpit next to the auxiliary seats on the right and left side cannot be opened
Mosquito net on the entrance door
Snow chain for the driving wheel
385/55 R22.5 front axle
3500 kg, 12 V socket
Load distribution plates
4 pcs. for 400×400 mm sleepers, for loose ground, 40 mm high, 10t load capacity, 6 kg/pcs.
Motorhome cabin without designation 2553 and ACTROS
MIELE, four zones, 230 V
TECMA BREEZE, clean and modern design, extremely silent operation, easy and fast installation, reliable operation, high quality components, integrated bidet
TECMA E-BREEZE, electronic bidet features, Posterior, feminine and ‘kids’ cleaning program, Massage function, Heated seat with variable temperature setting, Warm water with variable temperature setting, Dryer, Deodorised, Function IIP (intensiveimpulse pulsation). Variable spray, Automatic cleansing of the wands
HARMAN KARDON Citation Amp multiroom amplifier Two BOSE 791® II Virtually Invisible® ceiling speakersBOSE Bass Module 500B subwoofer
Satellite reception system
OYSTER V 85 Vision Twin, 85 cm parabolic antenna, fully automatic adjustment, control panel
OYSTER Connect, with SIM card adapter
Repeater unit for remote access
JVC KW-R930BT 2DIN, with Bluetooth, CD/USB/AUX
A total capacity 600 Ah or 800 Ah
VICTRON Quattro 24/8000/200-100/100 charger/sine wave inverter combination, charging power 24 V/max. 200 A, external power supply connection adjustable between 2-16 A, sinusoidal inverter with 24 – 230 V/6500 VA, Colour Control GX panel, three lithium batteries, LFP smart 25.9/200 A
3x or 4x or 5x or 6x Lithium batteriesLFP smart 25.9/200 A
total capacity 600Ah or 800 Ah or 1000 Ah or 1200 Ah
induction-type, integrated in the bedside table, 2 pcs.
Central vacuum cleaner
Ultrasonic alarm system
With door/storage area opening sensors, interior protection, can be deactivated with remote control
HONEYWELL, in the sleeping area and living area
Additional reverse lights, four mounted on the vehicle chassis
Electric mosquito nets and blinds
FISCHER PANDA, 5 kW, 230 V, 2200-2800 RPM
FISCHER PANDA, 5 kW, 230 V, 2200-2800 RPM
Telescopic, 4.1 m straight + ladder fixing in the garage
Foldable, multifunctional telescopic aluminium ladder,
280 to 560 cm + ladder fixing in the garage
For two bicycles in the rear garage with floor rails
Middle box doors
with unlock button
built into the door
Middle box doors
in the storage compartment
With electric winch, including brackets and ramp
3 pcs. with pneumatic, sealing system in the rear left
Heated side windows and skylights for even more comfort
Positioning camera for an electric wastewater drain valve
The highest category “A” AXALTA metallic paint on the entire vehicle, three-layer metallic pearl paint, four-layer anti-graffiti crystal lacquer
Experience land yachting. We will help you in finding the right model for you.
